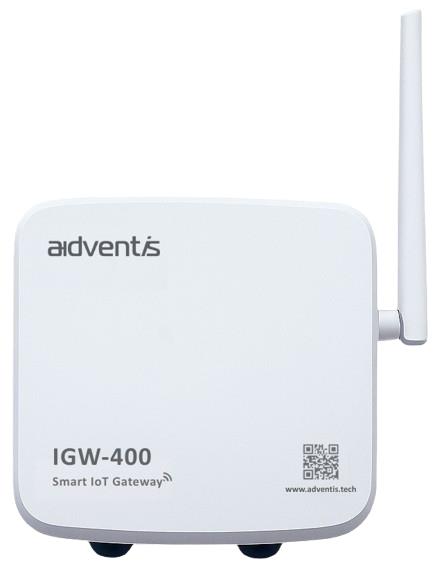

IGW-400 IoT Gateway
Smart Industrial IoT Gateway – Always Connected, Always Secure.
4G/LTE-ready, rugged IP66 design, with local RS485, digital I/O, and cloud integration – the perfect edge device for industrial IoT.
4G/LTE-ready, rugged IP66 design, with local RS485, digital I/O, and cloud integration – the perfect edge device for industrial IoT.
Key Features
Global LTE Connectivity: 4G Cat 1 with fallback to 2G.
Edge Integration: RS485 Modbus RTU for sensors/meters.
Flexible I/O: 1× Digital Input (0–24V), 1× Digital Output (24V / 250mA), 1× Relay Output (4A @ 24VDC / 40VAC).
Resilient Design: IP66 enclosure, -30°C to +60°C operation.
Edge Integration: RS485 Modbus RTU for sensors/meters.
Flexible I/O: 1× Digital Input (0–24V), 1× Digital Output (24V / 250mA), 1× Relay Output (4A @ 24VDC / 40VAC).
Resilient Design: IP66 enclosure, -30°C to +60°C operation.
Backup Power:
Built-in 2000mAh Li-ion battery.
Tamper Protection: Intrusion + power loss detection.

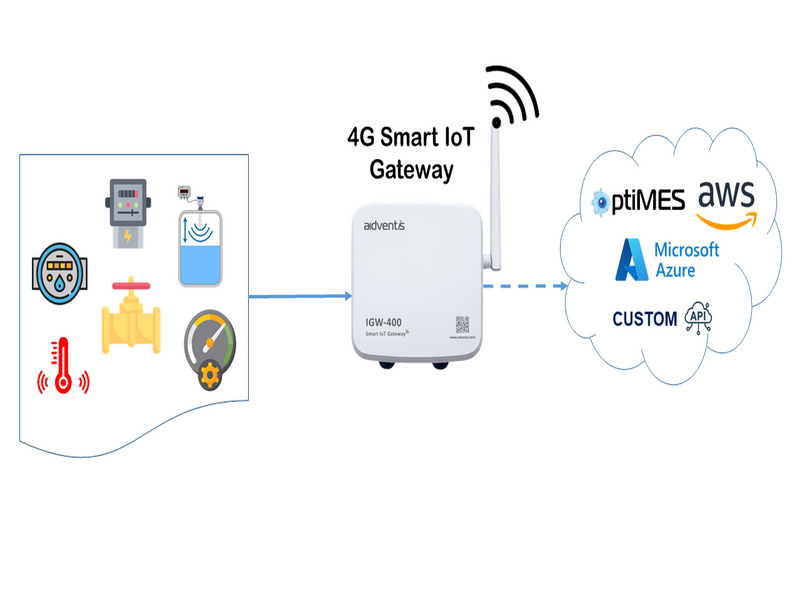

Cloud Ready: MQTT, HTTPS, TCP/UDP, Modbus RTU/TCP.
Platform Support: AWS IoT, Azure, OptiMES, Custom APIs.
Easy Management: Web-based setup + OTA firmware updates.
Tamper Protection: Intrusion + power loss detection.
Cloud Ready: MQTT, HTTPS, TCP/UDP, Modbus RTU/TCP.
Platform Support: AWS IoT, Azure, OptiMES, Custom APIs.
Easy Management: Web-based setup + OTA firmware updates.
Product Models
IGW-400 – Base unit (RS485 + LTE)
IGW-410 – Base + Digital I/O + Relay
IGW-411 – Base + Digital I/O + Relay + Tamper Detection
IGW-412 – Base + Digital I/O + Relay + Tamper Detection + Local Data Storage
Applications
Smart metering &
Utilities
Industrial
Automation
Oil & gas
remote monitoring
Smart City
Infrastructure
Water &
wastewater systems
Technical Snapshot
| Parameter | Specification |
|---|---|
| Controller | ARM Cortex-M4, 168 MHz |
| LTE Module | Quectel EC200U (Cat 1, fallback 2G) |
| Interfaces | RS485, DI, DO, Relay |
| Cloud Protocols | MQTT, HTTPS, TCP/UDP, Modbus |
| Platforms | AWS IoT, Azure, OptiMES |
| Backup Battery | 12V Li-Ion, 2000mAh (2h runtime) |
| Enclosure | IP66 waterproof |
| Operating Temp | -30°C to +60°C |
| Protection | Surge ±30kV ESD, ±4kV EFT |
| Dimensions / Weight | 155×145×55mm / 350g |
