Radar Level Transmitter
Radar Level Transmitter
LTR-101 Radar Level Transmitter

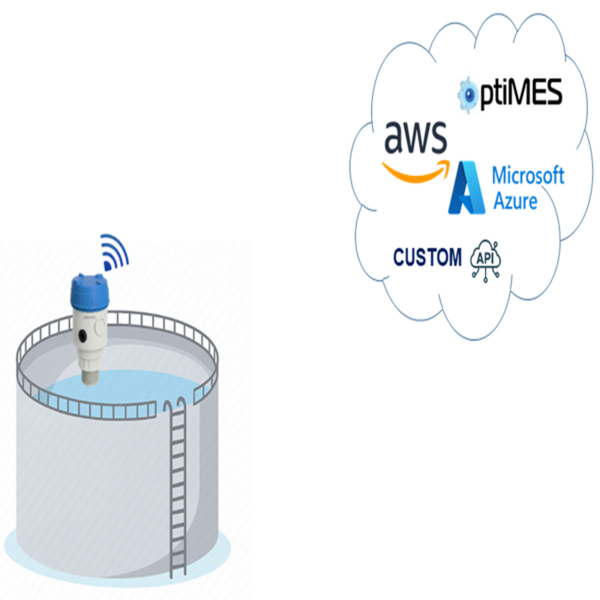

Radar Level Transmitter for Smart IoT Applications.
High-precision, 60 GHz radar technology for reliable liquid level measurement—built for Industry 4.0.
High-precision, 60 GHz radar technology for reliable liquid level measurement—built for Industry 4.0.
Key Features
60 GHz PCR Technology: Superior accuracy & long-term stability.
Wide Range: Measures up to 20m with a blind zone <0.15m.
Unmatched Accuracy: ±5mm with 1mm resolution.
Rugged & Reliable: Works in dust, steam, mist, rain, or snow.
Wide Range: Measures up to 20m with a blind zone <0.15m.
Unmatched Accuracy: ±5mm with 1mm resolution.
Rugged & Reliable: Works in dust, steam, mist, rain, or snow.
Smart Integration: Supports RS485 / Modbus RTU <E connectivity (IoT-ready models).
Energy Efficient: Low power (<1W), safe emissions, compliant with global standards.
Industrial Grade: IP66 protection, operating range -30°C to +75°C.
Energy Efficient: Low power (<1W), safe emissions, compliant with global standards.
Industrial Grade: IP66 protection, operating range -30°C to +75°C.
Product Models
LTR-101 – 10m range, RS485 output
LTR-102 – 20m range, RS485 output
LTR-201 – 10m range, RS485 + LTE IoT connectivity
LTR-202 – 20m range, RS485 + LTE IoT connectivity
Applications

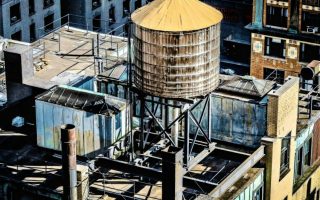

Industrial liquid ,
Storage tanks
Water & wastewater
treatment

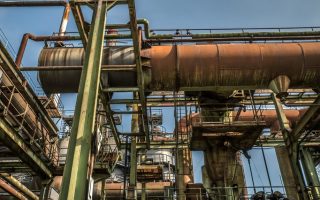

Oil & gas
Facilities

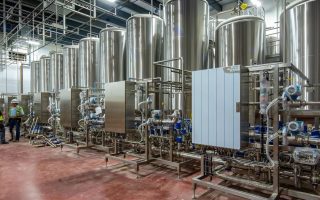

Food & Beverage
Plants
Chemical
Processing
Technical Snapshot
| Parameter | Specification |
|---|---|
| Medium | Liquids |
| Range | 10m / 20m |
| Accuracy | ±5mm |
| Resolution | 1mm |
| Frequency | 56–64 GHz |
| Beam Angle | 6° |
| Output | 2-wire, RS485, Modbus RTU, LTE (select models) |
| Power Supply | 9–24V DC (<1W) |
| Protection | IP66 |
| Operating Temp | -30°C to +75°C |
